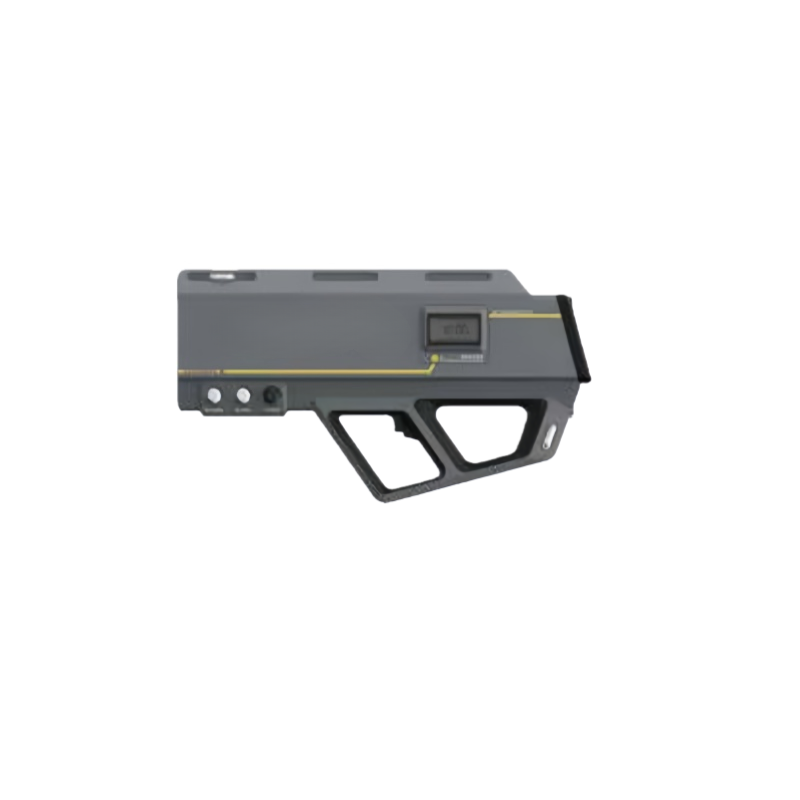

SJ-SJSJ1000M Portable Drone Monitor

The portable drone control equipment is a hand held detector. Equipment sets detection, evidence collection, networking scope and electricity counter in one body, processing what traditional hand-held visual jamming rely on the recognition of UAVs, their burdens in addition to leak-prone security personnel errors and so on, small-sized equipment, light weight, good familiarity to move, also applicable to important meeting place, work on large public events, and install their protective needs, including daily low-altitude patrolling. The equipment supports the connection between portable anti-drone terminals and multi-level administrative high command platforms, in combination with the distributed deployment of other anti-drone equipment.

Source detection, routing control

Using radio detection systems to detect drones prevalent in the market; Design targeted jamming antennas, with strong orientation, direction finding for jamming distances, and timely early warning

Software definition of frequency jamming

Drones are modified with software that allows fitting of jamming parameters, including frequency of jamming over frequency bands, jamming scan cycles, signal source patterns, length of interference duration, etc.

Widespread, timely early warning

Identification of drone targets by audio-visual warning provides information about the type of drone, its location, reference distance, etc., on the LED display.

The weight is very light

This equipment is small in size and very light in weight in the same products, and is applicable to most mobile scenarios

Working methods: detection, tracking, evidence collection, clear control, resistance, cross-functional networking

Reconnaissance frequency range: 800MHZ, 1400MHZ, 2.4 GHZ, 5.2 GHZ, 5.8 GHZ.

Interference range: 400MHZ, 600MHZ, 800MHZ, 900MHZ, 1.1 GHZ, 1.2 GHZ, 1.4 GHZ, 1.5 GZ, 2.4 GZ, 5.2 GZ, 5.8 GHZ

Software frequency ranges: 300MHZ to 2500MHZ.

Actual distance: detectable distance (2km (open environment), 0.5km-1km (city environment), detectable distance greater than 1km (radiation source of 0.1km)

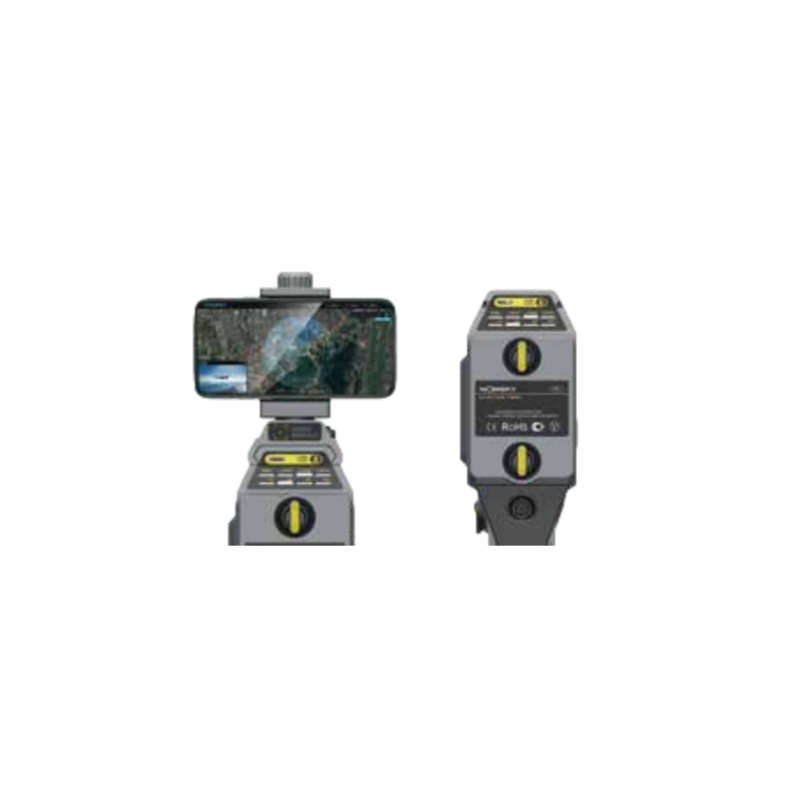

Information display: Support linking LED displays/mobile terminals (APP) showing self-check status, drone types, frequency, signals value, jamming length, location, etc.

Network function: Support multiple sets of equipment to achieve multi-point joint tasks through the mobile terminal back-end driving platform
