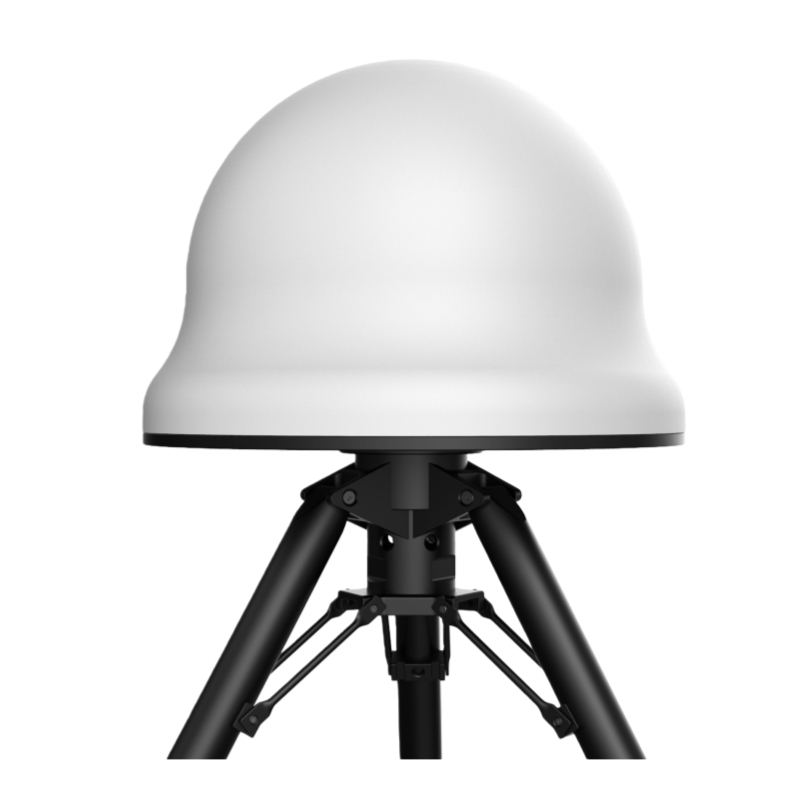

SJ-SJG5000 Deception Active Defense System

By simulating the launch of simulated navigation satellite signal, active deception defense system

By taking advantage of the power feature, the navigation system of the UAV can obtain false position information.

Navigation signal simulation, making the unmanned aerial vehicles entering the management and monitoring area “lost”, cannot be tracked

Drones can produce steering effects, make an emergency landing, or are unable to take off.

Integrated design

Signal simulation generator, transmitter and receiver antenna, control panel, power supply unit and other technical units are all integrated in one cavity to realize spoofing management and control.

After the division of routing management

360 degree omnidirectional deception, but also through the omnidirectional / directional antenna configuration to achieve a long distance of more than 5 km of deception by car

Interference range adjustable

The software can be controlled within 5 km of the deception navigation working distance.

Easy to install, widely used

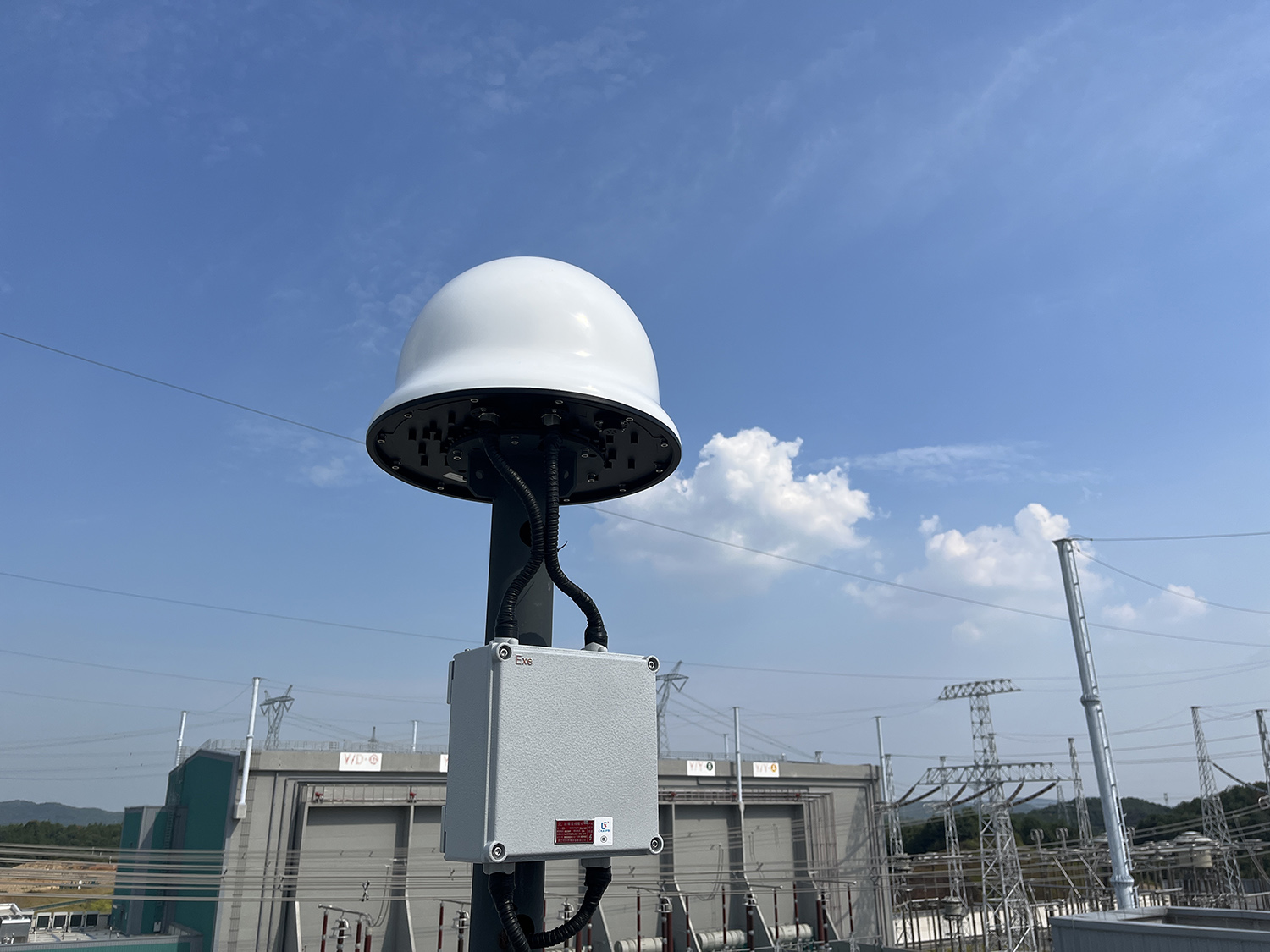

Adopt holding rod or wall hanging and other installation means, elegant appearance, good concealment

Type of signal spoofing: GPS, GLONASS, BDS, Galileo and other common navigation frequency bands

Aerial deception: ≥ 5 km, adjustable range

Working direction: 360 degree omnibearing (when there is no blockage)

Deception effect: drive, emergency landing, flying along the specified path

Monocular radiation power equivalent: ≤ 50W, power adjustable

Deception execution time: < 15 seconds

Start time: less than 5 minutes
