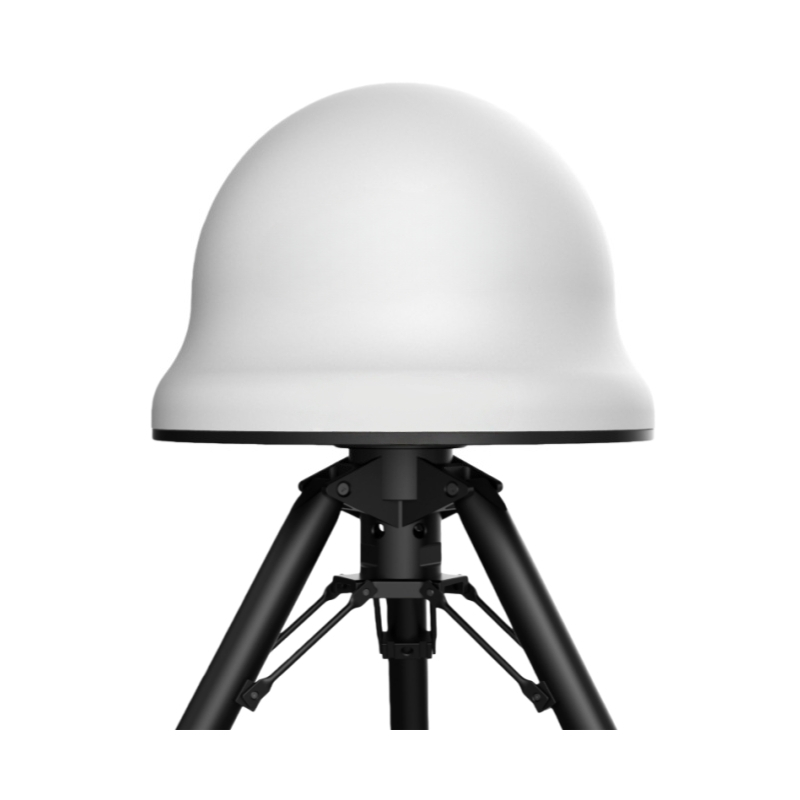

SJ-SJG1000 Deception Active Defense System

By simulating the launch of simulated navigation satellite signal, active deception defense system

By taking advantage of the power feature, the navigation system of the UAV can obtain false position information.

Navigation signal simulation, making the unmanned aerial vehicles entering the management and monitoring area “lost”, cannot be tracked

Drones can produce steering effects, make an emergency landing, or are unable to take off.

Integrated design

Signal simulation generator, transceiver antenna, control panel, power supply unit and other functional units

In one cavity to achieve deception control.

omnibearing management and control

360 degree omnidirectional deception, to achieve global coverage, but also through directional antenna configuration

Management and control of key areas

Small secondary effect

Signal transmitting power is one megawatt, equivalent to monocular transmitting power is less than or equal to 10 megawatts, and has little impact on people and the electromagnetic environment.

Easy to install

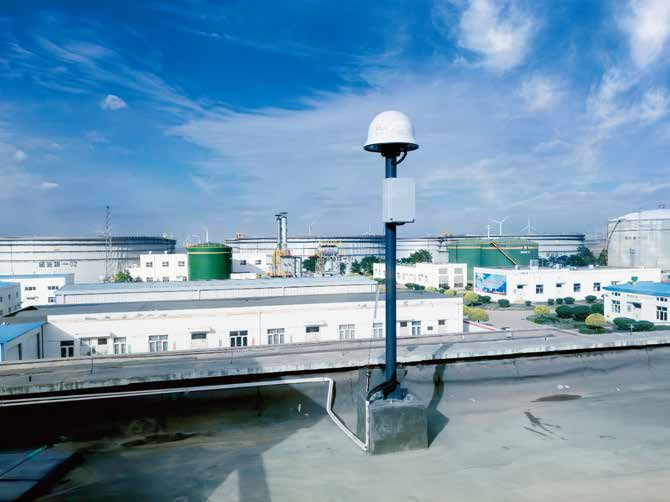

Adopt holding rod or wall hanging and other installation means, elegant appearance, good concealment

Type of signal spoofing: GPS, GLONASS, BDS, Galileo and other common navigation frequency bands

Extracting distance: 500m to 1000m, adjustable range

Working direction: 360 degree omnibearing (when there is no blockage)

Deception effect: drive, emergency landing, flying along the specified path

Single radiant power equivalent: ≤ 10mW

Deception execution time: < 10s

Start time: ≤ 5 minutes
