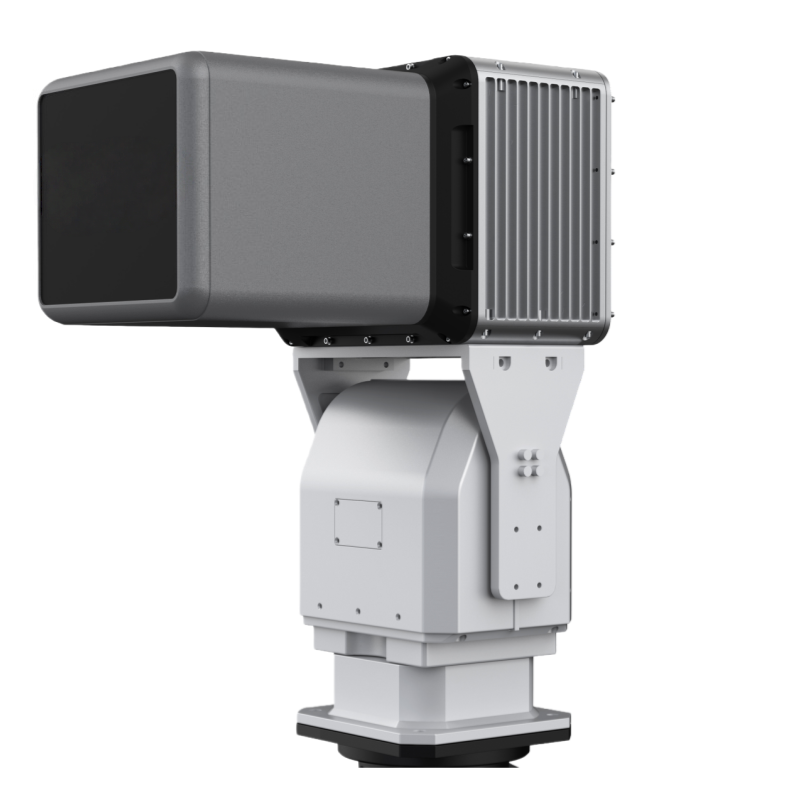

SJ-SJJ3000+ Full Wave Interferometer

The Multi-Frequency Interferometer is a software-defined interference device that can adjust the interference frequencies to the prevailing drone bands.

Point and interference bandwidth, with support for independent or combined output of multiple interference channels. Full frequency interference devices work by sending out electromagnetic waves to disrupt.

Disabling the drone's satellite navigation signals or cutting off communication links between the aircraft and the remote control, resulting in the drone being forced to land or...

Return effect.

Software-defined bandwidth

It has full interference capability across the frequency range from 300MHz to 6GHz, covering most products available on the market.

Some communications and navigation bands for drones; Interference devices can be configured in real time.

Common drone frequencies, interference scan cycle, signal source patterns, interference

Important criteria for intervention such as the duration of spanking

Strong ability to confront.

The digital interference source supports multiple forms of modulation, including FSK, BPS, QPSK, and QAM.

Modulation signals such as 16QAM, 64QAM and OFDM, which effectively deal with various types of non-consumables

Helicopters and unconventional aircraft; The power of each amplification stage exceeds more than 100W, ensuring excellent performance.

Highly Anti-Interference Drones have excellent anti-interference capabilities.

Integrated design

The entire device consists of modules such as interference device, intelligent variable speed control bracket, and mounting bracket.

The design is compact, with a high degree of integration; The power amplifier uses fanless thermal cooling.

Design, enhance the reliability of equipment work

Easy installation and wide application

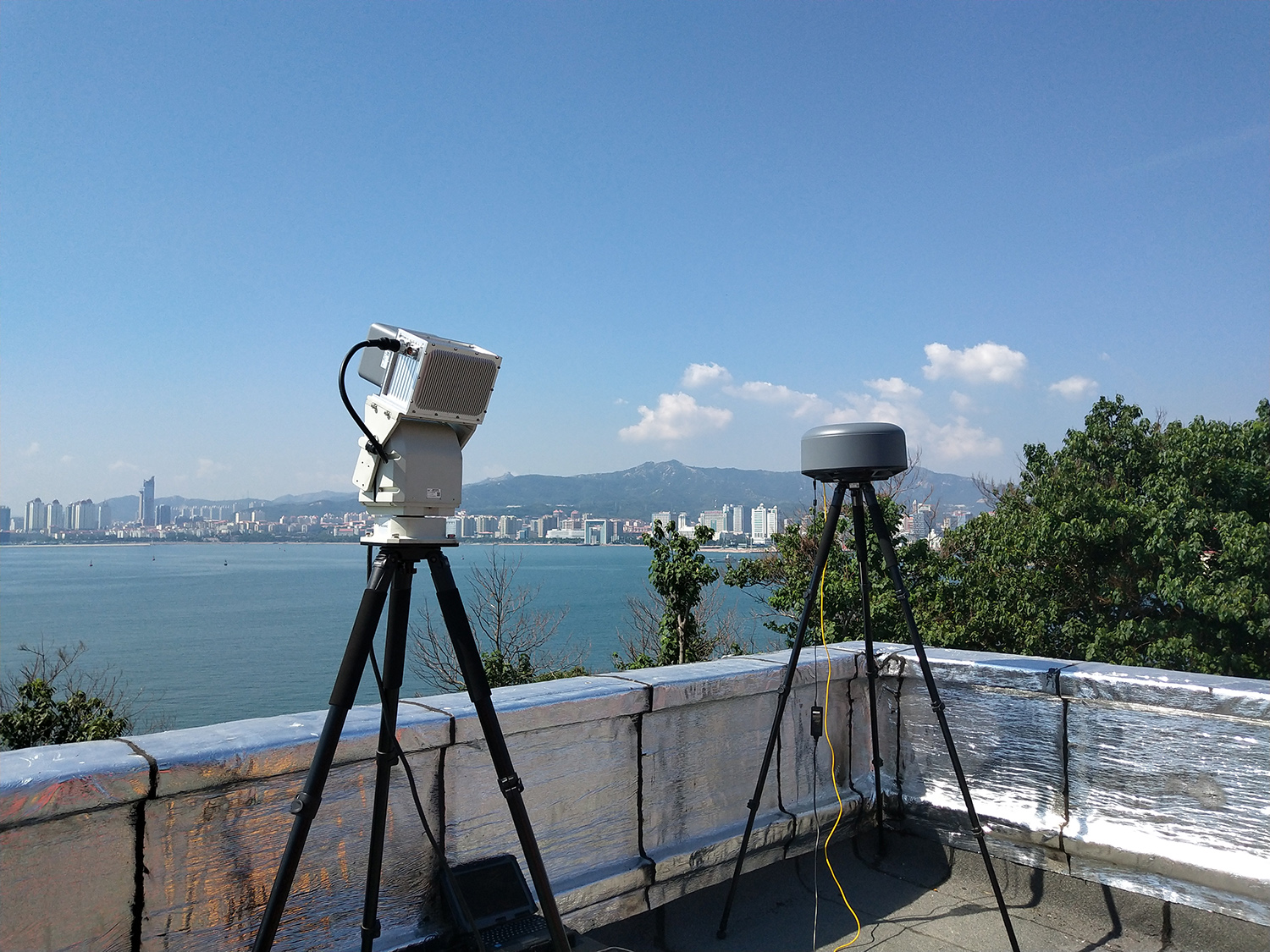

Can be installed using a fixed rod, making it suitable for long-term preventive deployment in areas; It can also be used with tripods.

Quick-install structure, suitable for temporary weather protection in important meetings and large security events.

Protection mission

Interference frequency range: 300MHz to 6GHz

Interference distance: ≥3km (0.1W radiation source)

Dry ratio: ≥10:1

Overlapping angle: 360° (using lever)

Interference effective time: ≤3 seconds

Platform rotation speed: horizontal 0.02° to 60°/s, vertical 0.02° to 30°/s.
