SJ-SJR3000 Radar Detection Equipment is a kind of radar detection equipment, which is aimed at low height of small targets, omnibearing and high angle coverage.
It is mainly used in detecting the low altitude position of aircraft. Radar can be accurate
The utility model can match interference, laser weapons, and navigation.
Deception and other counter equipment cascades to provide accurate information about the target location.
Full spatial range detection distance
Around the clock, in all weather conditions, widely in the reconnaissance and surveillance area, effectively getting
Azimuth, distance and elevation (pitch angle) of targets, such as birds, etc.
The utility model has the advantages of long detection distance, high data rate, etc.
Get high resolution position, high refresh rate
User can choose high speed tracking of specified target, high precision manual
Angle measuring device and regularly updating the target location
Intelligent goal setting
The radar uses automatic target identification classification, and can detect low altitude
Small goal
Different publishing methods

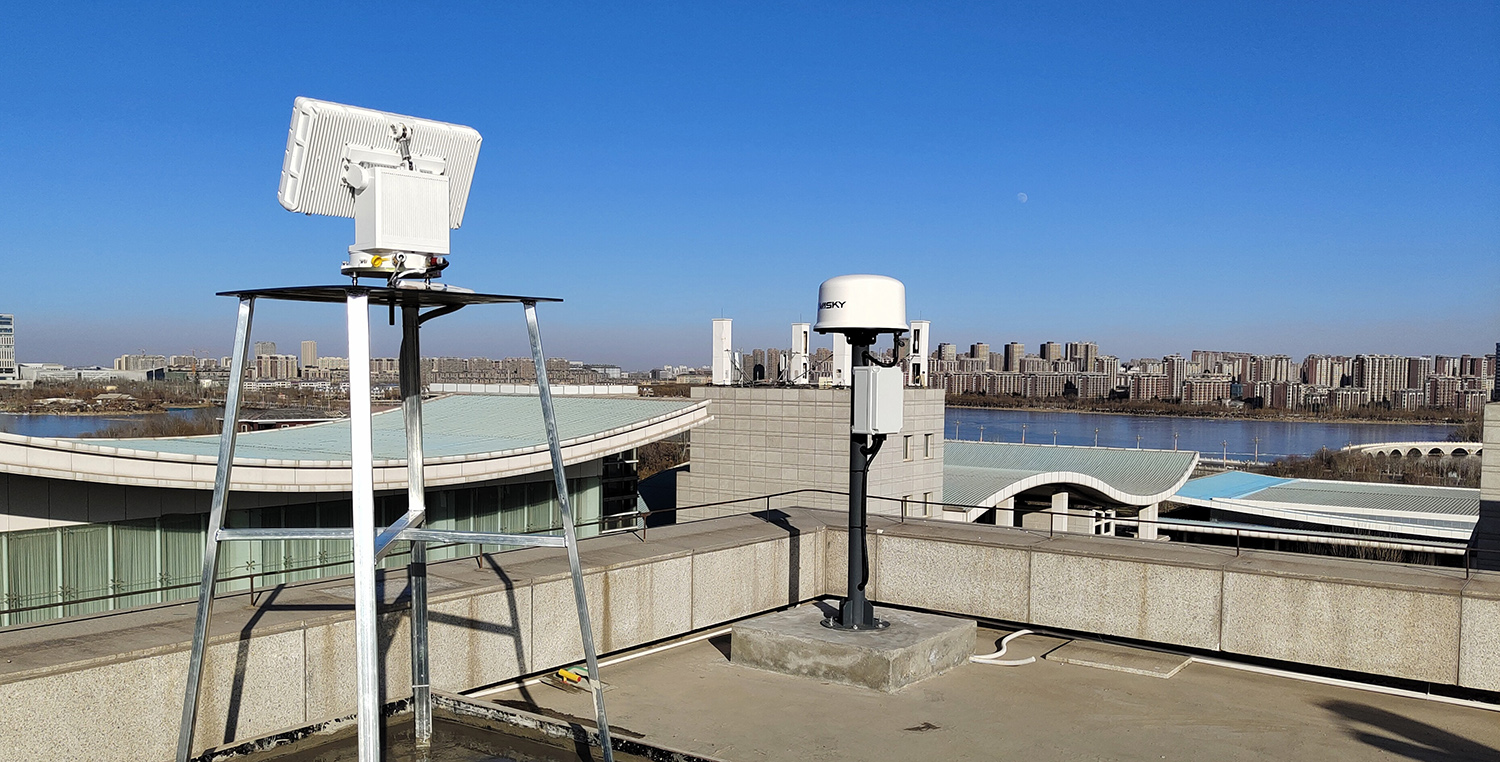

Utility model can adopt tripod quick erection, upright pole type installation, vehicle mounted type installation.
Target detection requirements in many applications

Operating frequency: X-band (9GHz ~ 10.6GHz)
Scanning method: Azimuth scanning machine + phase-controlled scanning
Detection angle: Azimuth: 0° ~ 360° scanning, pitch angle 0° ~ 40°
Detection radius: 3 km (Red Crescent = 0.01 ㎡)
Detection accuracy: accuracy range ≤ 10m; Azimuth accuracy ≤ 0.6°; Pitch accuracy: ≤ 0.6°
Resolution Resolution: Now > 30m in direction (: > 3°, satellite resolution: > 9°
