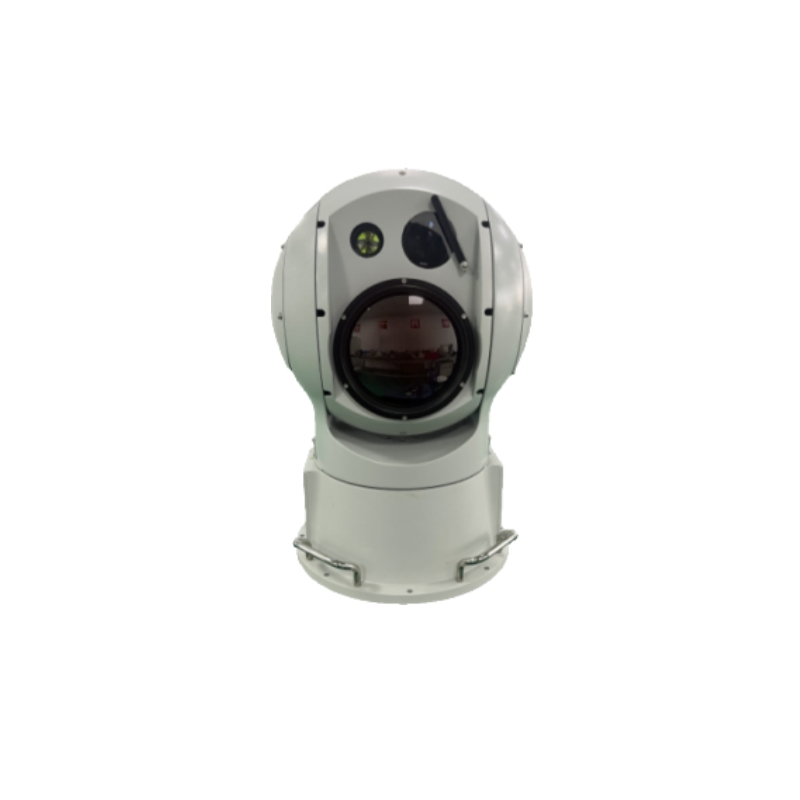

SJ-SJC3000 photoelectric tracking equipment

Photoelectric tracking equipment built-in visible light high-definition fog penetration camera network heating imaging camera, built-in intelligent vision

Detect and track algorithm, visible light, low light, fog, bad weather, night, etc. 24 hours a day.

Target recognition and uninterrupted tracking. The body is made of high-strength alloy shock-absorbing die-casting shell, embedded three explosion-preventer

Coating, heat insulation, high temperature, cold resistance, shock resistance, anti-corrosion, good wind resistance and shock absorption performance.

Monitor every day

Integrated high-definition visible and uncooled thermal imaging

They complement each other, so that the target cannot hide, to meet day and night, in all weather and environment.

Demand monitoring

Intelligent tracking recognition algorithm

Built-in deep learning photoelectric equipment tracking algorithm, can achieve speed locking of radar or spectrum guidance

Automatic identification and tracking Manual lock tracking; Depending on the size of the target in the video image

Zoom and focus small lens capable of automatic adjustment

High precision control

Adopt turbo worm drive, high precision servo motor control

Establish a self-learning path, support identification of key areas of interest, and support

Self-locking, applicable to moving platform after power failure self-protection equipment

Stable and reliable, high level of protection

Adopt spherical design, resist strong wind, low stirring motion, stable and clear imaging. Prevent heavy rain

Dust-proof design, meanwhile, with lightning protection, anti-surge, anti-surge of corrosion protection functions

Detection distance: small drone (0.3 * 0.3m), thermal imaging > 1.5km, visible light > 3km

Tracking pattern: Support target detection, identification and tracking function, alarm can be linked and disposed of. Support automatic classification and recognition

Intelligentization: Horizontal 0 ~ 360° infinite continuous rotation, Vertical - 45° ~ +90°

Range: Horizontal locking speed 0°~80′/s, Vertical locking speed 0°~60°/s

Rotation speed: manual, automatic, radar linkage

Positioning accuracy: + 0.02°

Presets: 256 pieces
