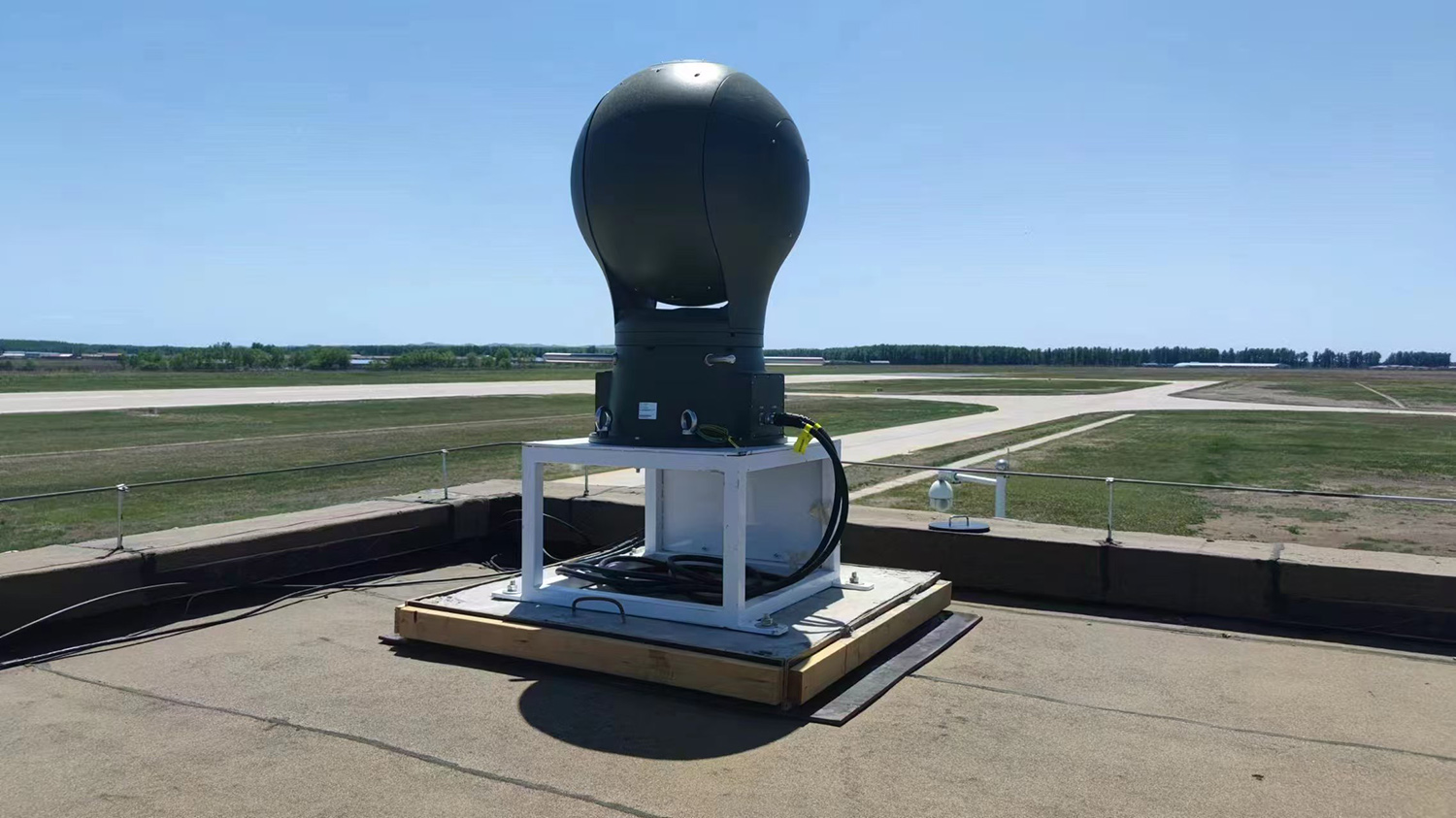

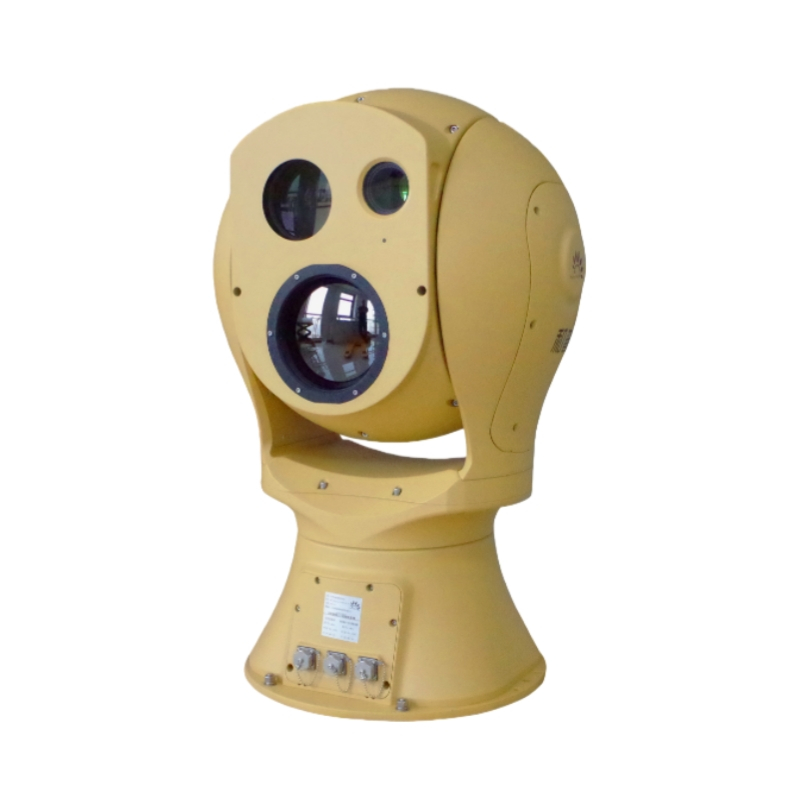

The device adopts spherical design, resistance to strong wind, low stirring motion, stable and clear image. Upper and lower split type structure
The utility model has the advantages of simple structure, convenient operation, structure design, independent packaging and transportation, and complete weight dispersing machine.
transportation of products; Adopting modular design, according to customer requirements, flexibility with channel detection, flexibility
Optical configuration selection, thus meeting the detection and recognition requirements of all kinds of weather conditions such as fog, rain and snow.
Determine needs, etc. Adopting integrated die casting die manufacturing process, strong rigidity structure, light weight, and sealing
The utility model can work reliably in harsh environment field for a long time.
Monitor every day
Integrated high-definition visible light and medium wave cooling thermal imaging
Complement each other, so that the target can't escape the shape, satisfies day and night, all-weather and environment supervision
Demand control
High precision positioning
High precision angular encoder with closed loop servo control system.
High-performance image processing unit matched with high-precision focus control machine.
Auto focus accuracy
Specify broad coverage
Azimuth range of 0°～360°, pitch range of 90°～+90°,
Achieve dead angle detection, complete coverage
High degree of intelligence
It can realize the functions of radar linkage, target lock, real-time tracking and so on.
Humanization, automation level of informatization
Determine distance (vision 20km): Mini drone (0.3*0.3m), thermal imaging ≥ 3km (7*4pix), visible light ≥ 6km (12*8pix).
Tracking mode: manual, automatic, radar linkage
Intelligent: Support cruise intrusion detection, cross-territorial intrusion detection. Support tracking mechanism; Support hot alarm ; Support 3D zoom/location check box; Support automatic classification and recognition
Rotation angle: level 0 ~ 360 degrees, continuous rotation; Pitch - 90° ~ + 90°
Rotation speed: level 0.01°～120°/s, pitch 0.01°～80°/s (continuously variable speed)
Positioning accuracy: 0.01°
Preset: ≥ 200 pieces
