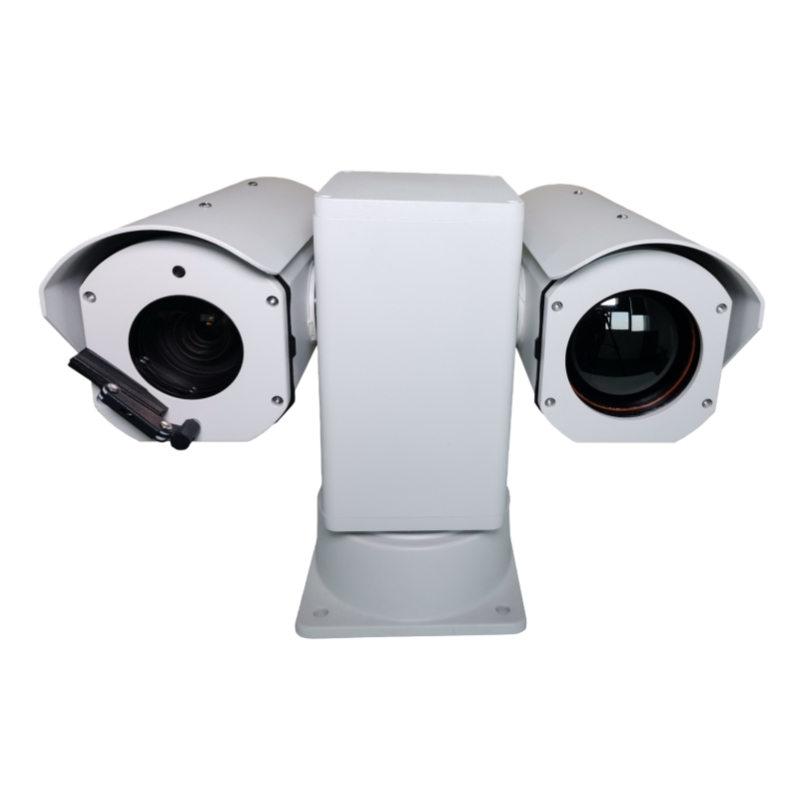

SJ-SJC2000I photoelectric tracking equipment

Photoelectric tracking equipment built-in visible light high-definition fog penetration camera network heating imaging camera, built-in intelligent vision

Detect and track algorithm, visible light, low light, fog, bad weather, night, etc. 24 hours a day.

Target recognition and uninterrupted tracking. The body is made of high-strength alloy shock-absorbing die-casting shell, embedded three explosion-preventer

Coating, heat insulation, high temperature, cold resistance, shock resistance, anti-corrosion, good wind resistance and shock absorption performance.

After detecting target detection

Integrating advanced synchronous auto zoom and fast focus algorithms.

The lens quickly zooms to a specified number, focusing on

Avoid manual focus on guiding unmanned aerial vehicles in a long distance.

The judgment system is inaccurate, the focus is not in place, the control has a large delay, the target is shot down.

Loss problem

Automatic tracking and identification

The utility model can automatically lock, track and automatically identify the target (UAV).

It can identify different types of drones and civil aviation passengers automatically.

Low level aircraft (objects) such as airplanes, birds, etc.

Short-range occlusion due to forests, bushes, branches, etc. The device can still lock the target tracking.

Without losing

Intelligent edge computing

Powerful equipment with computing power, using deep learning algorithm to detect the shape of the target

Intelligent algorithms, such as long-term moving objects

And inertial navigation algorithm, support intelligent APP

High resolution cloud platform

Selection of high-precision stepper motors, providing many high-precision preset positions and self-learning paths,

Adopting full digital control, it can be arbitrary fast positioning and continuous tracking scanning. Cloud platform

Monitoring function, setting idle time can return to a preset point

Detection distance: small drone (0.3 * 0.3m), thermal imaging ≥ 1 km, visible light ≥ 2 km

Tracking mode: manual, automatic, radar linkage

Intelligent: target identification alarm, cross-border intrusion alarm, sensor loading alarm

Range: Horizontal 0 ~ 360° infinite continuous rotation, Vertical - 90° ~ +90°

Rotation speed: Horizontal locking speed 0°～60°/s, vertical locking speed 0°～60°/s

Power consumption: normal work ≤ 30W, peak start ≤ 40W

Protection degree: IP66
