Radar Detection Equipment SJ-SJR5000+

Radar detector equipment is a set of three-dimensional space monitoring

Radar, mainly used in detecting the low-altitude position of aircraft. The radar can detect the target accurately.

The utility model can be serialized with anti-jamming equipment, laser weapons, navigation deception, etc.

It provides accurate information about the target location.

Full spatial range detection distance

Around the clock, in all weather conditions, widely in the reconnaissance and surveillance area, effectively getting

Azimuth, distance and elevation (pitch angle) of targets, such as birds, etc.

The utility model has the advantages of long detection distance, high data rate, etc.

Get high resolution position, high refresh rate

User can choose high speed tracking of specified target, high precision manual

Angle measuring device and regularly updating the target location

Intelligent goal setting

The radar uses automatic target identification classification, and can detect low altitude

Small goal

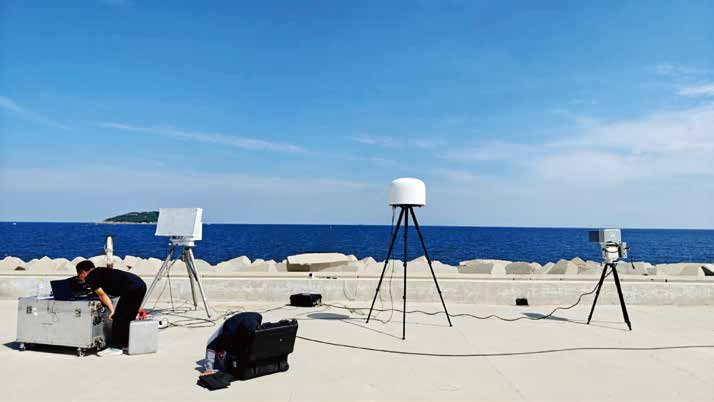

Diversify equipment deployment patterns

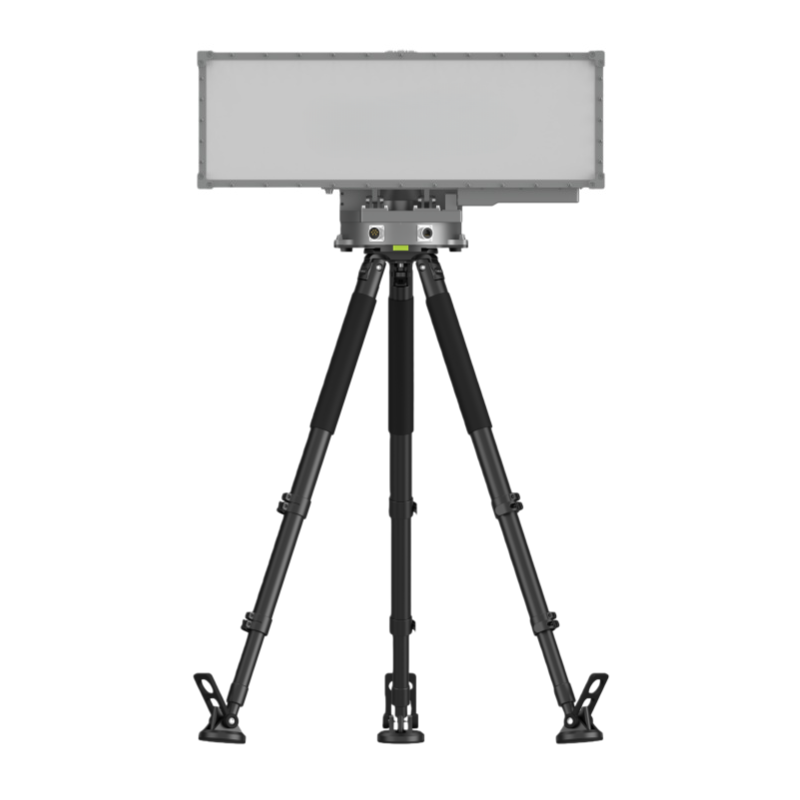

Tripod racks with fixed and portable poles can be installed on vehicles;

Adapt to targeting needs in multi-application environments

Working band: Ku-band

Scanning method: Azimuth scanning machine + phase-controlled scanning

Detection angle: Azimuth: 0° ~ 360° scanning, pitch angle 0° ~ 40°

Detection radius: 5km (drones RCS=0.01㎡) Small

Detection accuracy: Range accuracy: ≤ 10m, Azimuth accuracy: ≤ 0.6°, Pitch accuracy: ≤ 0.6°

> 30m Resolution: Distance Resolution from location: Resolution > 3°, Satellite: > 9°
